Grinder Details
Description

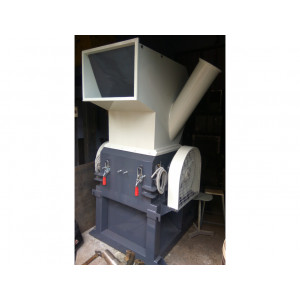

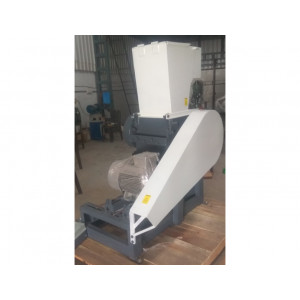

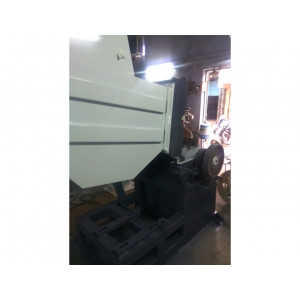

"DRD" Series Plastics scrap Grinder
"DRD" SERIES Plastics scrap Grinder, is used for the grinding of rejected plastics products which are first cut in small pieces and then grinded as per mesh size. These grinded pieces can be reused for the various application.
- Complete Granulating system consisting of heavy and steel construction body specially designed for vibration free operation and long lasting performance.

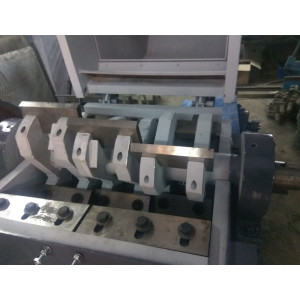

- Specially designed Rotor which is dynamically balanced and suitable for grinding of variety of plastics articles. grinding blades are mounted on rotor for continuous grinding operation. stationary blades are mounted on heavy stel construction body.
- Main Grinding motor AC with suitable Electrical controls.
- Screening system to have finally uniform size of grinded particles.
Features
- Robust & Heavy steel construction body,
- Operation at less vibration.
- Long lasting & maintenance free operation.
- Higher output at low power consumption.
- Easy removal of screen for cleaning.
- Wide range of models for better selection.
- Rotory knives designed with scissors cut action and effective cutting angle to ensure effective grinding.
- Grinding knives are made from special alloy steel and hardened for longer life with easy adjustment facility.
- Side feeding attachment for pipes and material loading can be offered as optional.
- Grinding screen, top opening ,feeding attachment are designed for easy opening, maintenance and change.
- Special designed Rotor type grinder suitable for grinding of variety of materials including Injection Molded articles, Blow Molded articles, Rotational molded, Pipes, etc.
APPLICATION
- Blow molded articles like bottles, Jerry cans, drums, jars.etc
- Injection Molded hollow articles like buckets, baskets cabinets, etc
- Rotational Molded Articles, scrap of Plastics tanks
- Pipes from pipes dia 20 mm to 200 mm OD,
Specification
| PERTICULAR | UNIT | DRD- 12 | DRD- 15 | DRD- 18 | DRD- 24 |
|---|---|---|---|---|---|
| Length of Blades | mm | 300 | 375 | 400 | 600 |
| Suitable to grind Blow , roto, PVC / PE PIPES, | YES | YES | YES | YES | YES |
| Throat size | mm | 350 x 425 | 425 x 475 | 500 x 550 | 650 x 700 |
| Grinding motor | mm | 300 | 375 | 400 | 600 |
| Length of Blades | Hp | 7.50 | 10.00 | 20.00 | 30.00 |
| Grinding capacity | Kgs/hr | 100- 120 | 150 TO 200 | 250 TO 300 | 400 TO 500 |
| Floor space in ( L X W ) | Mtr | 1.3 x 1.2 | 1.6 x 1.40 | 1.8 x 1.4 | 2 x 1.50 |
