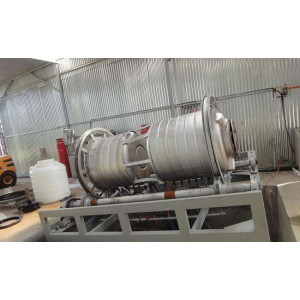

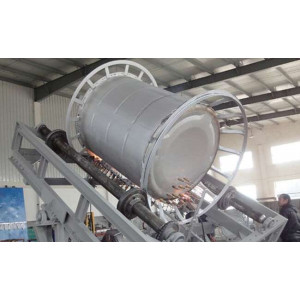

Rock N Roll Machine
Rock N Roll Machine Details
Description
RNR design has been proven for last 50 years which had started trend of Rotomolding process which had further inspired world to develop other advance Roto machines like Carousel , Bi axial and shuttle machines.
Features
RNR design has been proven for last 50 years which had started trend of Rotomolding process which had further inspired world to develop other advance Roto machines like Carousel , Bi axial and shuttle machines.
- PlC CONTROLLED OPERATION(OPTIONAL)
- Rocking with hydraulic system for low power and smooth operation.
Old, proven, simple concept of operation. - Total process visual, easy operation, higher production, most economical concept
- Most recommended, suitable machine for low cost production especially big, hollow and cylindrical products.
- Most Economical machine to produce 3000 to 40,000 Ltrs tanks
- Faster payback period especially in bigger size tanks / products
- Elect panel with all digital meters / desplays, all features and interlocking.
- Special roto articles like septic tanks, boats or any long and cylindrical shaped can be produced in RNR.
- Most preferred machine as START UP project due to low cost and low investment
Application
- For large size tanks like 3000 to 40,000 Ltrs/10,000 USG and large simple and cylindrical roto articles.
- Start up Projects due to low cost.
Specification
| Perticular | Unit | Model | |||
|---|---|---|---|---|---|
| Machine Model | ROTOR-5000 | ROTOR-10000 | ROTOR-25000 | ROTOR-40,000 | |
| Range, Vertical Tanks, | Ltr | 200-5000 | 500-10,000 | 500-25000 | 500-35000 |
| Frame size, L x W | Mtr | 200-5000 | 500-10,000 | 500-25000 | 500-35000 |
| Pit size, L x W x Depth | Mtr | 4.5 x 3x 2.2 | 6x3.5x 2.8 | 7x 4.5x 3 | 7x 4.5 x3.5 |
| No of Burners, | Nos | 22 | 28 | 34 | 42 |
| Rocking Motor AC | HP | 5 | 10 | 15 | 20 |
| Rolling motor AC ( Drive) | HP | 3 | 5 | 10 | 10 |
| Total Load | HP | 11 | 19 | 34 | 39 |
